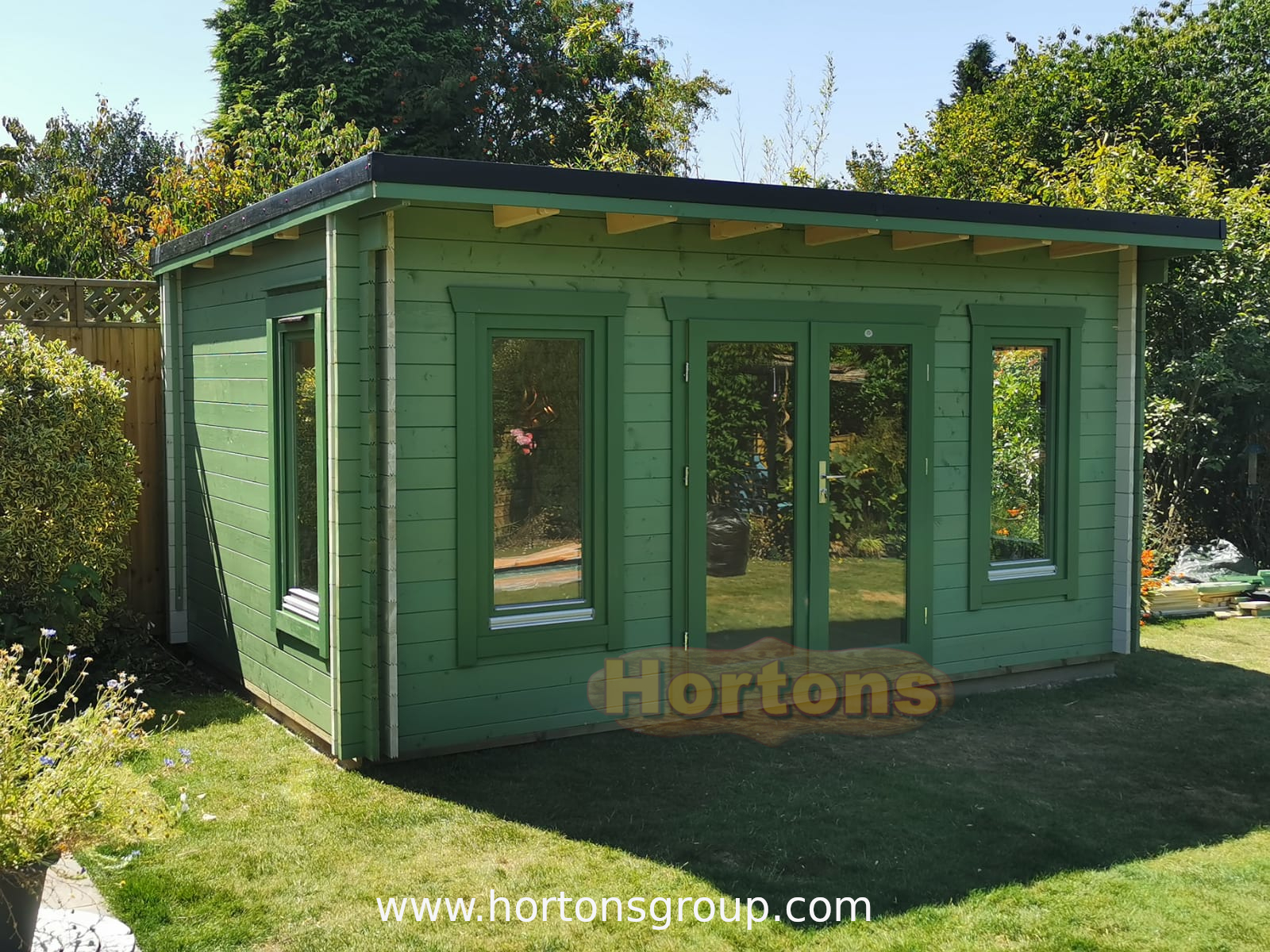

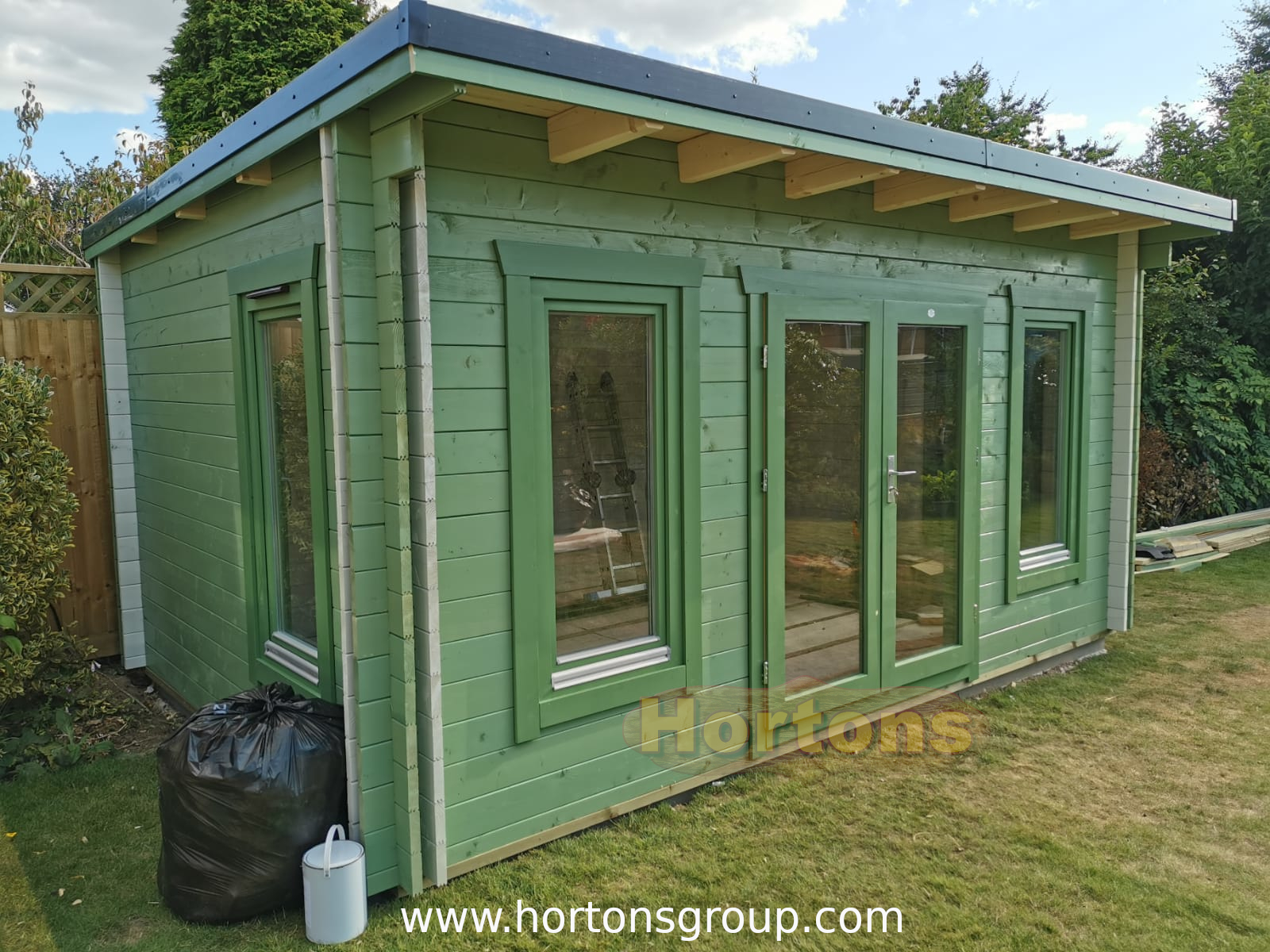

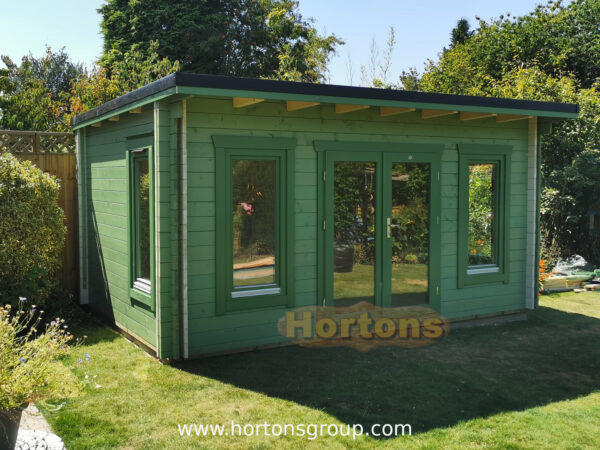

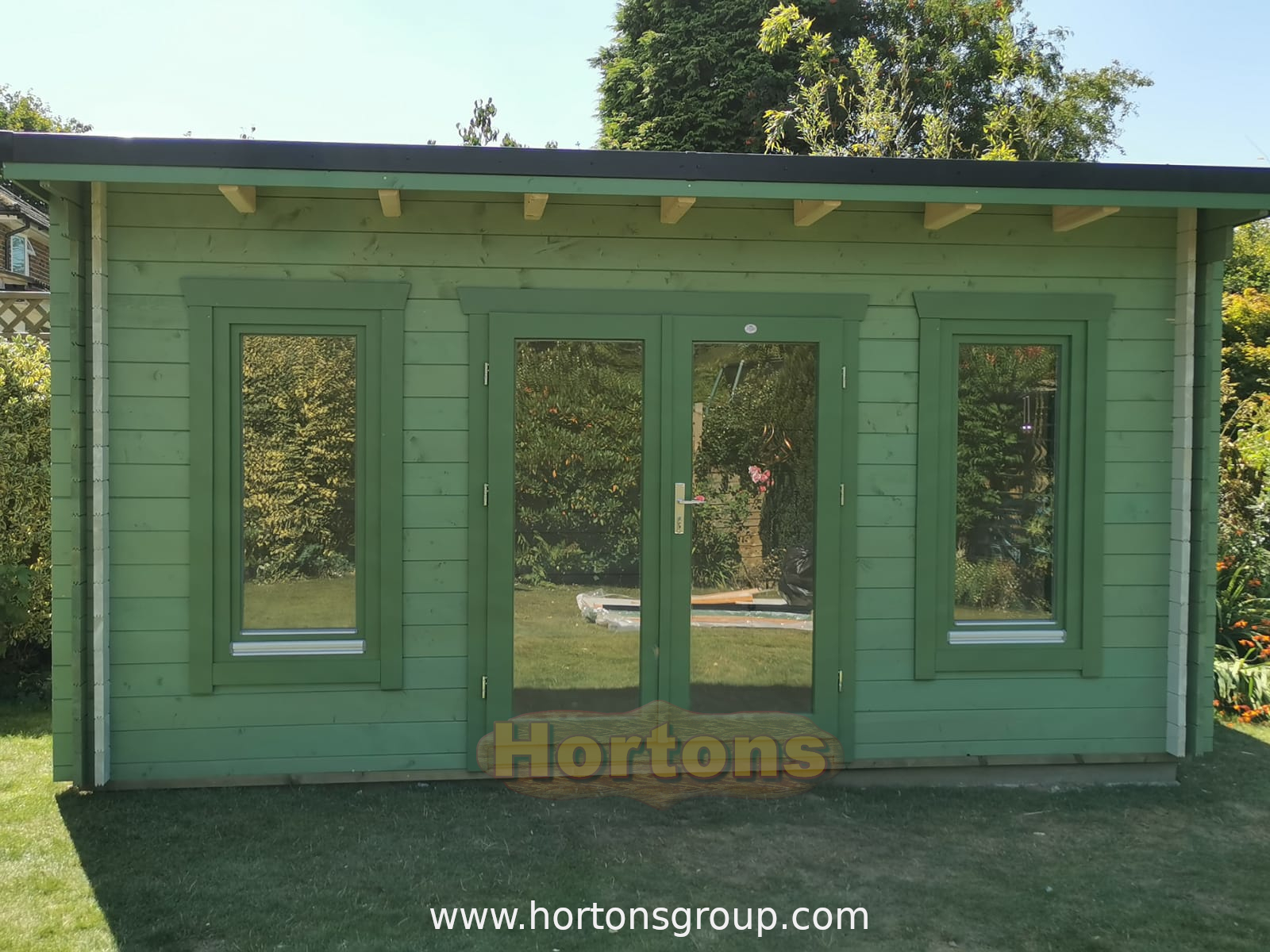

This 5m x 3m pent roof log cabin has lots of options. Make it suitable for your own use!

£4,567.80
This 5m x 3m pent roof log cabin has lots of options -make it suitable for your own use!This 5x3m pent garden room is 2.5m at the front and 2.1m at the rear. it therefore firts within any rules or permissions required. We can also increase the rear wall height…
Read More

Garden Cabin Model: 3025-5030

  • Log Cabin Width: 5m
  • Log Cabin Depth: 3m

  • Building Wall Height: 2.1m
    Building Ridge Height: 2.5m
    4 x 710mm(w) x 1480mm(h) Window
    1 x 1565mm(w) x 1855mm(h) Double Door

    This 5m x 3m pent roof log cabin has lots of options. Make it suitable for your own use!

    £4,567.80

    CHOOSE YOUR LOG CABIN WALL THICKNESS: Which one is best for me?

    Which wall thickness and cabin specification is best for you?

    Insulating the roof and floor of a single skin cabin dramatically improves their usability (warmer in the winter and cooler in the summer), but a Twin Skin is far superior. The table below shows the values achieved with Hortons log cabins (the lower the U value, the better it is).

    Cabin Specifications U-value of Building (W/m²K)
    28mm log cabin, no insulation 2.56
    45mm log cabin, no insulation 2.28
    28mm log cabin, with just roof insulation - no floor insulation 1.78
    45mm log cabin, with just roof insulation - no floor insulation 1.48
    45mm log cabin with roof and floor insulation 0.84
    70mm log cabin with roof and floor insulation 0.81
    Hortons Insulated Twin Skin Log Cabins
    35+35mm Twin Skin log cabin with standard fiberglass insulation kit 0.6
    35+35mm Twin Skin log cabin with standard Celotex insulation kit 0.35
    45+45mm Twin Skin log cabin with standard Celotex insulation kit (50mm wall cavity) 0.34
    45+45mm Twin Skin log cabin with non-habitable UK Building Regulations Celotex insulation kit (90mm wall cavity) 0.23
    45+45mm Twin Skin log cabin with UK Building Regulations Celotex insulation kit (105mm wall cavity) 0.21
    70+70mm Twin Skin log cabin with UK Building Regulations Celotex insulation kit (105mm wall cavity) 0.2

    lower the U value, the better it is) -

    For realistic comparison purposes, this is a table showing the U values required by UK Building Regulations for homes over

    the years, so you can see how the insulation of our cabins compare with houses built through the decades -

    Year 1965 1970 1980 1990 2000 2010 2016 2016 2022
    Whole Building U-value (W/m²K) 1.95 1.81 1.59 0.99 0.63 0.37 0.25 0.25 0.23

    We also offer upgrades for windows and doors, glazed areas, and cold spots. Upgrading these makes a big difference as well.

    • 28mm Single Skin
    • 35mm Single Skin
    • 45mm Single Skin
    • 60mm Single Skin
    • 70mm Single Skin
    • 28mm Twin Skin = 106mm Thick Walls
    • 35mm Twin Skin = 120mm Thick Walls
    • 45mm Twin Skin = 140mm Thick Walls
    5x3 Farnham 28mm pent log cabin

    General options (popular options to choose for our log cabins)
    No options found for this product ID.
    Roofline options
    No options found for this product ID.
    Windows and doors
    No options found for this product ID.
    Paints and treatments (Factory painting or self-application options)
    No options found for this product ID.
    Installation service for log cabins and timber buildings
    No options found for this product ID.
    Other items that you may want to enquire about
    No options found for this product ID.
    5x3 Farnham 35mm pent log cabin

    5x3 Farnham 45mm pent log cabin

    5x3 Farnham 60mm pent log cabin

    5x3 Farnham 70mm pent log cabin

    Farnham Twinskin 28 + 28mm 5.0 x 3.0m

    Farnham Twinskin 35 + 35mm 5.0 x 3.0m

    Farnham Twinskin 45 + 45mm 5.0 x 3.0m

    What makes a warm garden room?

    This 5x3m pent garden room has many different specifications and options. The base model is 28mm single skin wall logs, which is perfectly fine as an uninsulated summerhouse or store room. Next up are 34mm and 44mm walls. These are more substantial than the 28mm cabin. But not just thicker - they have double tongue and grooves for a stronger, more weatherproof joint. Not only that, but they also come with double glazing as standard as well. But if you add our insulated roof and floor kit to these, it makes it much more useable. It's warm enough to use in Spring and Autumn with minimal heat required. Then stepping up further through the wall thicknesses to 70mm single skin. This is obviously a very substantial strong log cabin and obviously that much warmer than a 28mm wall.

    However, Twin Skin cabins are about 3 times warmer than an equivalent amount of timber to use a thick single skinned cabin due to the cavity walls. We can even make cabins to comply with Building Regulations for habitation! Our Twin skin cabins are suitable as garden annexes because they are as warm as a new-build house! Read more information about our market leading insulated garden rooms and cabins.

    Quality Log Cabin Kits

    All of our log cabin kits are made from good quality kiln dried spruce which is felled from responsibly managed and sustainable forests. The key to stable timber is that it grows in cold climates. This makes each growth ring thinner, leading to a dense and durable product. The thinner the growth ring, the thinner each cell becomes. It is the thickness of the timber cells that make it more stable, or not.

    We make all Hortons log cabins from slow grown spruce timber. Double glazed windows and doors are standard for all Hortons Log Cabins of wall thickness 35mm and above. 28mm Log cabins come with single glazing as standard ( Upgrade is available). We fit your glass for free before delivery, unlike some of our competitors. Hortons cabin doors come with special security hinges which are also adjustable. It is not possible to unscrew our log cabin doors from their frame to gain access - we use special security hinges which are also fully adjustable. We can add extra doors and windows to any Hortons Log Cabin, call us for details & quotes. Minimum purlin size for Hortons log cabins is 70x140mm and no greater than 600mm apart for a very strong roof
