6m x 5m pent log cabin with veranda 2

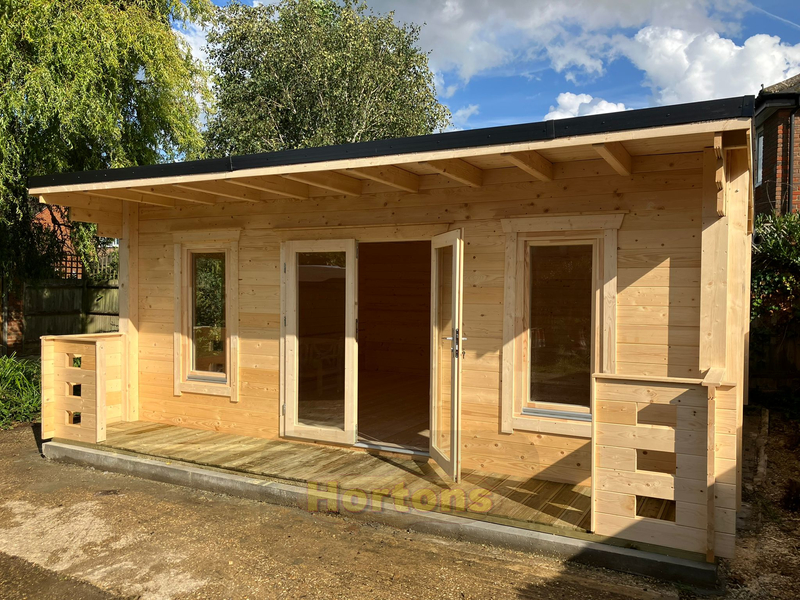

6m x 5m pent log cabin with veranda

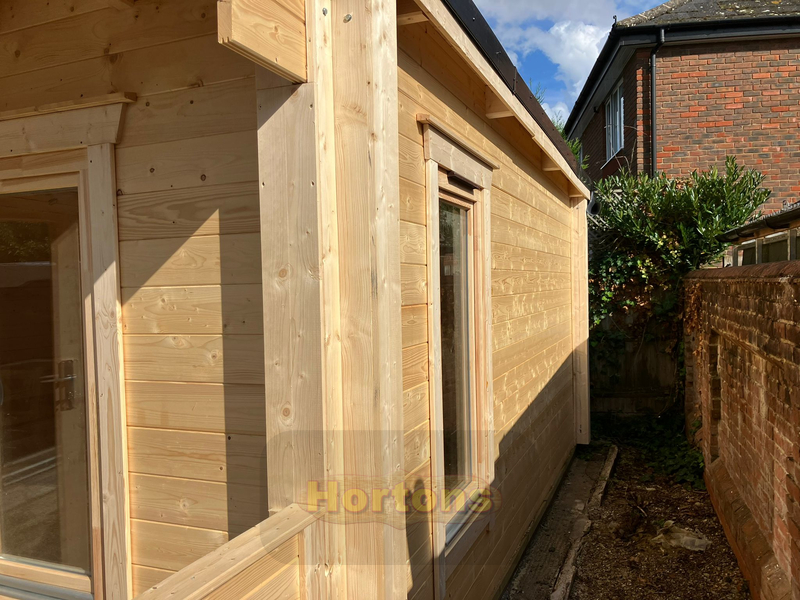

6m x 5m pent log cabin column corners

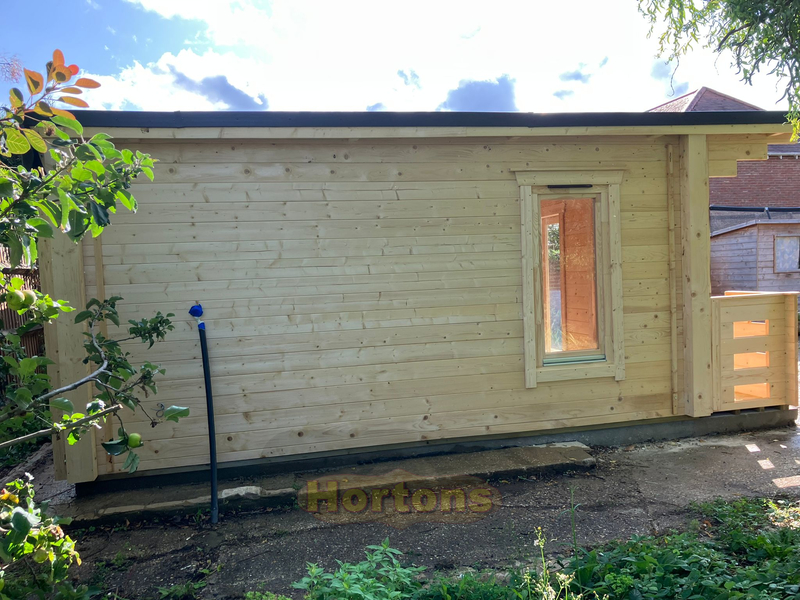

6m x 5m pent log cabin side wall

Modern style large 6m x 5m pent roof log cabin

£7,479.35
Lewes 6x5m timber cabin features This contemporary 6m x 5m pent roof garden cabin measures 2.5m at the front and 2.4m at the rear, so there is plenty of headroom through out the whole area (no need to duck near the back wall!). The shallow slpe requires EPDM rubber roofing…
Read More

Garden Cabin Model: 2280-6050

  • Log Cabin Width: 6m
  • Log Cabin Depth: 5m

    • Building Wall Height: 2.4m
    Building Ridge Height: 2.5m
    4 x 710mm(w) x 1230mm(h) Window
    1 x 1565mm(w) x 1855mm(h) Double Door

    Modern style large 6m x 5m pent roof log cabin

    £7,479.35

    CHOOSE YOUR LOG CABIN WALL THICKNESS: Which one is best for me?

    Which wall thickness and cabin specification is best for you?

    Insulating the roof and floor of a single skin cabin dramatically improves their usability (warmer in the winter and cooler in the summer), but a Twin Skin is far superior. The table below shows the values achieved with Hortons log cabins (the lower the U value, the better it is).

    Cabin Specifications U-value of Building (W/m²K)
    28mm log cabin, no insulation 2.56
    45mm log cabin, no insulation 2.28
    28mm log cabin, with just roof insulation - no floor insulation 1.78
    45mm log cabin, with just roof insulation - no floor insulation 1.48
    45mm log cabin with roof and floor insulation 0.84
    70mm log cabin with roof and floor insulation 0.81
    Hortons Insulated Twin Skin Log Cabins
    35+35mm Twin Skin log cabin with standard fiberglass insulation kit 0.6
    35+35mm Twin Skin log cabin with standard Celotex insulation kit 0.35
    45+45mm Twin Skin log cabin with standard Celotex insulation kit (50mm wall cavity) 0.34
    45+45mm Twin Skin log cabin with non-habitable UK Building Regulations Celotex insulation kit (90mm wall cavity) 0.23
    45+45mm Twin Skin log cabin with UK Building Regulations Celotex insulation kit (105mm wall cavity) 0.21
    70+70mm Twin Skin log cabin with UK Building Regulations Celotex insulation kit (105mm wall cavity) 0.2

    lower the U value, the better it is) -

    For realistic comparison purposes, this is a table showing the U values required by UK Building Regulations for homes over

    the years, so you can see how the insulation of our cabins compare with houses built through the decades -

    Year 1965 1970 1980 1990 2000 2010 2016 2016 2022
    Whole Building U-value (W/m²K) 1.95 1.81 1.59 0.99 0.63 0.37 0.25 0.25 0.23

    We also offer upgrades for windows and doors, glazed areas, and cold spots. Upgrading these makes a big difference as well.

    • 35mm Single Skin
    • 45mm Single Skin
    • 60mm Single Skin
    • 70mm Single Skin
    • 35mm Twin Skin = 120mm Thick Walls
    • 45mm Twin Skin = 140mm Thick Walls
    • 60mm Twin Skin = 170mm Thick Walls
    • 70mm Twin Skin = 190mm Thick Walls
    6m x 5m pent roof Lewes

    General options (popular options to choose for our log cabins)
    No options found for this product ID.
    Roofline options
    No options found for this product ID.
    Windows and doors
    No options found for this product ID.
    Paints and treatments (Factory painting or self-application options)
    Fire protection options
    Fire protection options
    Installation service for log cabins and timber buildings
    No options found for this product ID.
    Other items that you may want to enquire about
    No options found for this product ID.
    Lewes 45mm, 6 x 5 pent log cabin

    Lewes 60mm 6x5m log cabin

    Lewes 70mm 6.0 x 5.0

    Lewes 6x5m Twinskin 35 + 35mm

    Lewes Twinskin 45 + 45mm 6.0 x 5.0

    6x5m log cabin Twinskin 60+60mm Lewes

    Lewes 70/70mm Twinskin 6x5m log cabin

    We make all Hortons log cabins from slow grown spruce timber. Double glazed windows and doors are standard for all Hortons Log Cabins of wall thickness 35mm and above. 28mm Log cabins come with single glazing as standard ( Upgrade is available). We fit your glass for free before delivery, unlike some of our competitors. Hortons cabin doors come with special security hinges which are also adjustable. It is not possible to unscrew our log cabin doors from their frame to gain access - we use special security hinges which are also fully adjustable. We can add extra doors and windows to any Hortons Log Cabin, call us for details & quotes. Minimum purlin size for Hortons log cabins is 70x140mm and no greater than 600mm apart for a very strong roof
