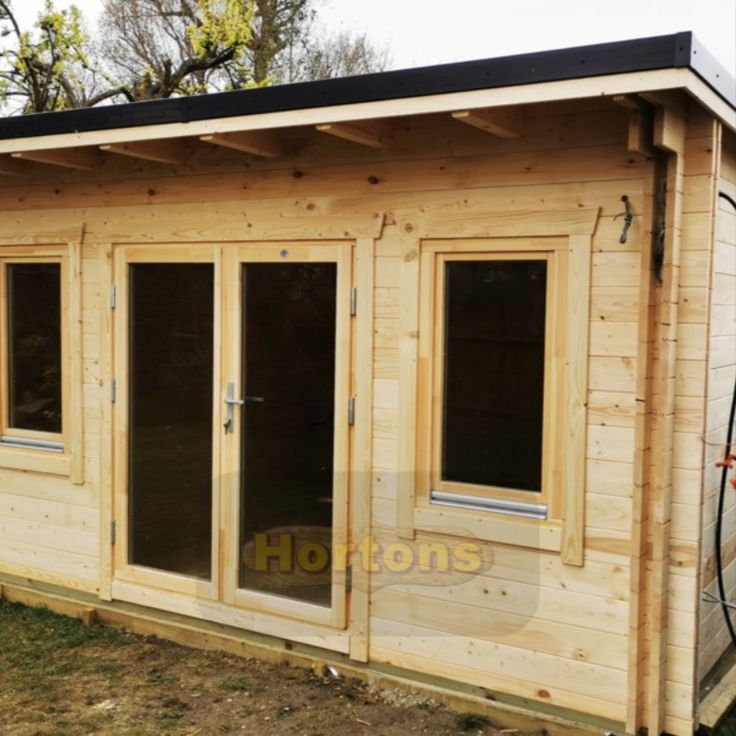

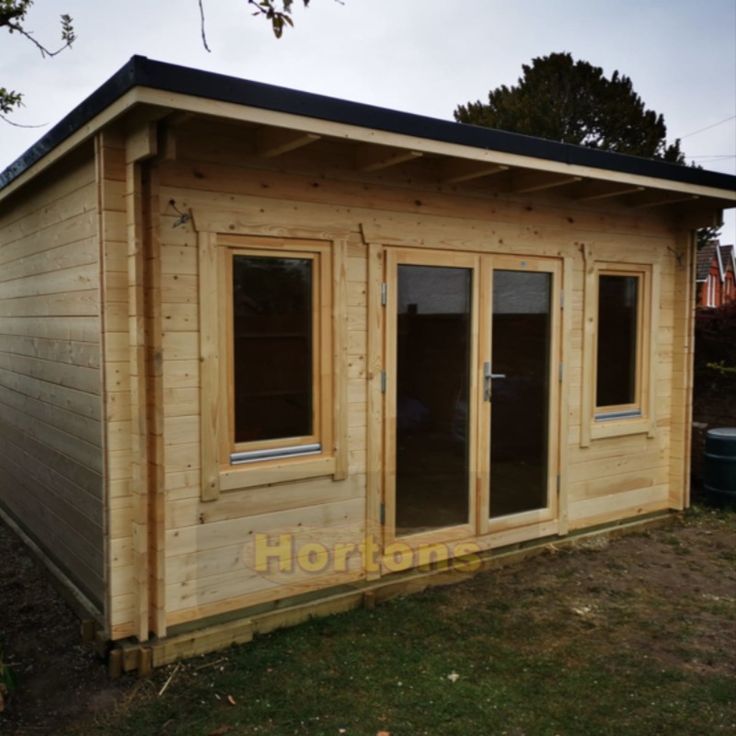

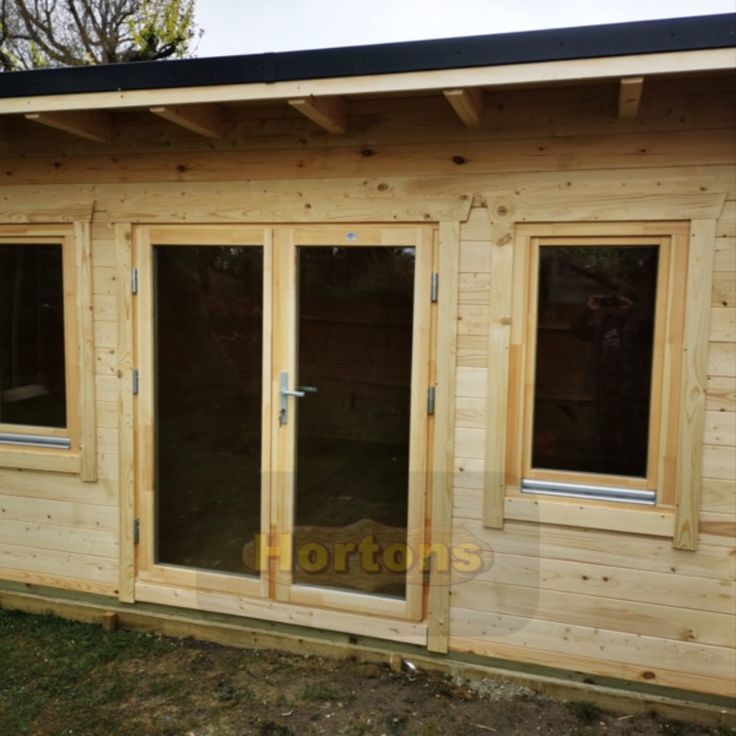

5m x 5m pent roof insulated garden room front with 2 windows and double doors
5x5m pent roof insulated garden room front
5m x 5m pent roof insulated log cabin front
5x5m pent roof log cabin front

Contemporary 5×5 garden garden cabin with pent roof design

£4,271.31
Contemporary 5x5 garden garden cabin with pent roof design This modern garden cabin design has a pair of double doors and 2 front facing windows. The high roof throughout the cabin makes it light and airy inside but is still under 2.5m high overall (the rear is 2.1m as standard…
Read More

Garden Cabin Model: 2280-5050

  • Log Cabin Width: 5m
  • Log Cabin Depth: 5m

    • Building Wall Height: 2.1m
    Building Ridge Height: 2.5m
    2 x 710mm(w) x 1230mm(h) Window
    1 x 1565mm(w) x 1855mm(h) Double Door

    Contemporary 5×5 garden garden cabin with pent roof design

    £4,271.31

    CHOOSE YOUR LOG CABIN WALL THICKNESS: Which one is best for me?

    Which wall thickness and cabin specification is best for you?

    Insulating the roof and floor of a single skin cabin dramatically improves their usability (warmer in the winter and cooler in the summer), but a Twin Skin is far superior. The table below shows the values achieved with Hortons log cabins (the lower the U value, the better it is).

    Cabin Specifications U-value of Building (W/m²K)
    28mm log cabin, no insulation 2.56
    45mm log cabin, no insulation 2.28
    28mm log cabin, with just roof insulation - no floor insulation 1.78
    45mm log cabin, with just roof insulation - no floor insulation 1.48
    45mm log cabin with roof and floor insulation 0.84
    70mm log cabin with roof and floor insulation 0.81
    Hortons Insulated Twin Skin Log Cabins
    35+35mm Twin Skin log cabin with standard fiberglass insulation kit 0.6
    35+35mm Twin Skin log cabin with standard Celotex insulation kit 0.35
    45+45mm Twin Skin log cabin with standard Celotex insulation kit (50mm wall cavity) 0.34
    45+45mm Twin Skin log cabin with non-habitable UK Building Regulations Celotex insulation kit (90mm wall cavity) 0.23
    45+45mm Twin Skin log cabin with UK Building Regulations Celotex insulation kit (105mm wall cavity) 0.21
    70+70mm Twin Skin log cabin with UK Building Regulations Celotex insulation kit (105mm wall cavity) 0.2

    lower the U value, the better it is) -

    For realistic comparison purposes, this is a table showing the U values required by UK Building Regulations for homes over

    the years, so you can see how the insulation of our cabins compare with houses built through the decades -

    Year 1965 1970 1980 1990 2000 2010 2016 2016 2022
    Whole Building U-value (W/m²K) 1.95 1.81 1.59 0.99 0.63 0.37 0.25 0.25 0.23

    We also offer upgrades for windows and doors, glazed areas, and cold spots. Upgrading these makes a big difference as well.

    • 28mm Single Skin
    • 35mm Single Skin
    • 45mm Single Skin
    • 60mm Single Skin
    • 70mm Single Skin
    • 28mm Twin Skin = 106mm Thick Walls
    • 35mm Twin Skin = 120mm Thick Walls
    • 45mm Twin Skin = 140mm Thick Walls
    5m x 5m Weybridge 28mm Pent roof log cabin

    General options (popular options to choose for our log cabins)
    No options found for this product ID.
    Roofline options
    No options found for this product ID.
    Windows and doors
    No options found for this product ID.
    Paints and treatments (Factory painting or self-application options)
    Fire protection options
    Fire protection options
    Installation service for log cabins and timber buildings
    No options found for this product ID.
    Other items that you may want to enquire about
    No options found for this product ID.
    5m x 5m pent log cabin - 35mm Weybridge

    5m x 5m Weybridge pent roof 45mm log cabin

    5m x 5m Weybridge Pent roof 60mm log cabin

    5m x 5m Weybridge Pent roof 70mm log cabin

    5m x 5m Weybridge pent roof 28mm Twinskin log cabin

    5m x 5m Weybridge pent roof 35mm Twinskin log cabin

    5m x 5m Weybridge pent roof 45mm Twinskin log cabin

    This great garden room will give you the extra space that you need. The modern design means that it will fit nicely into any garden.

    We make all Hortons log cabins from slow grown spruce timber. Double glazed windows and doors are standard for all Hortons Log Cabins of wall thickness 35mm and above. 28mm Log cabins come with single glazing as standard ( Upgrade is available). We fit your glass for free before delivery, unlike some of our competitors. Hortons cabin doors come with special security hinges which are also adjustable. It is not possible to unscrew our log cabin doors from their frame to gain access - we use special security hinges which are also fully adjustable. We can add extra doors and windows to any Hortons Log Cabin, call us for details & quotes. Minimum purlin size for Hortons log cabins is 70x140mm and no greater than 600mm apart for a very strong roof
