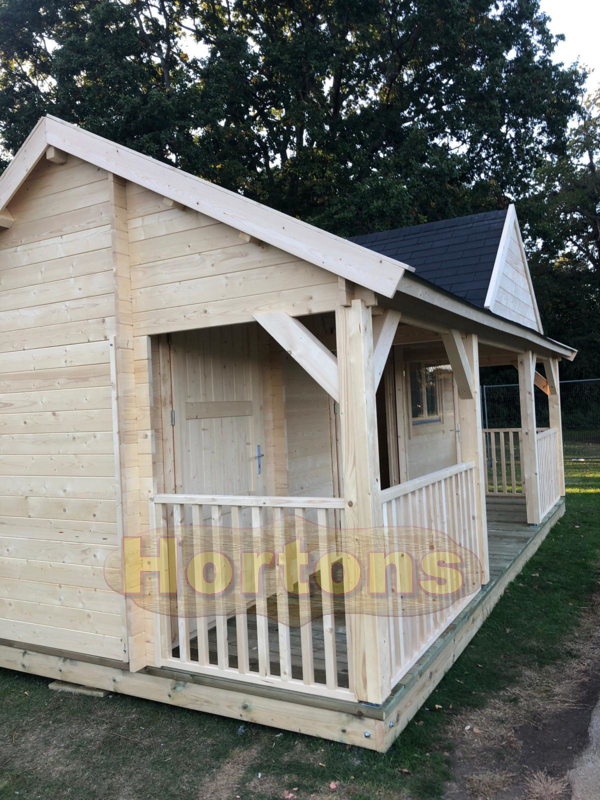

7x4m sports clubhouse with viewing platform and clocktower
7m x 4m sports pavilion with clocktower

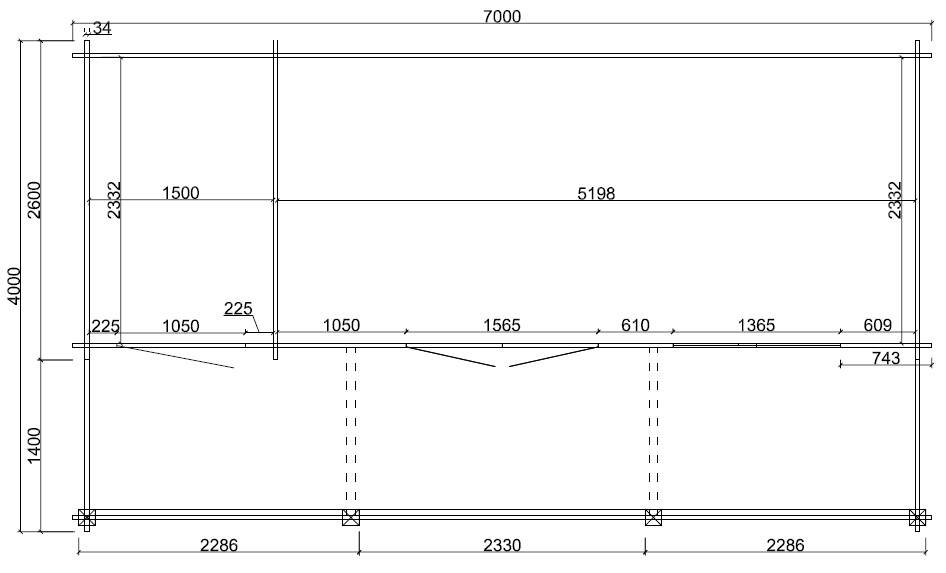

7m x 4m sports pavilion plan - 2 rooms

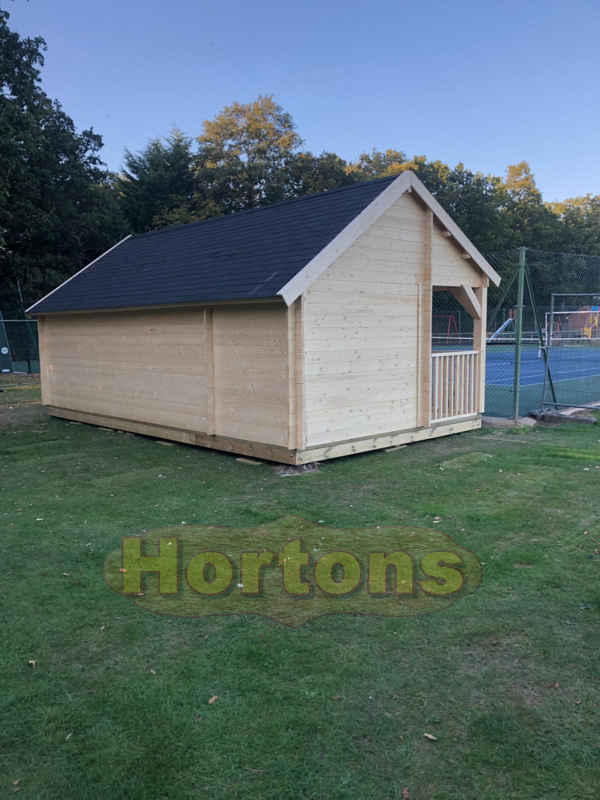

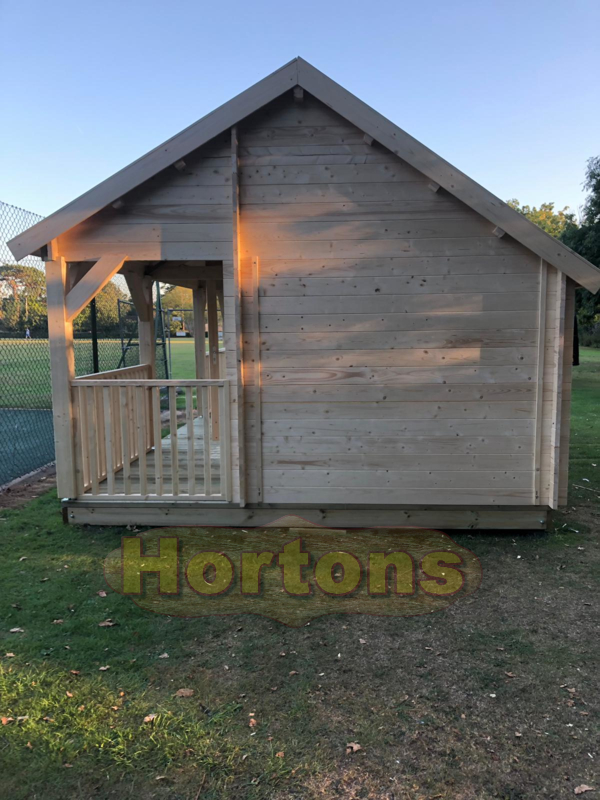

7m x 4m sports clubhouse side view

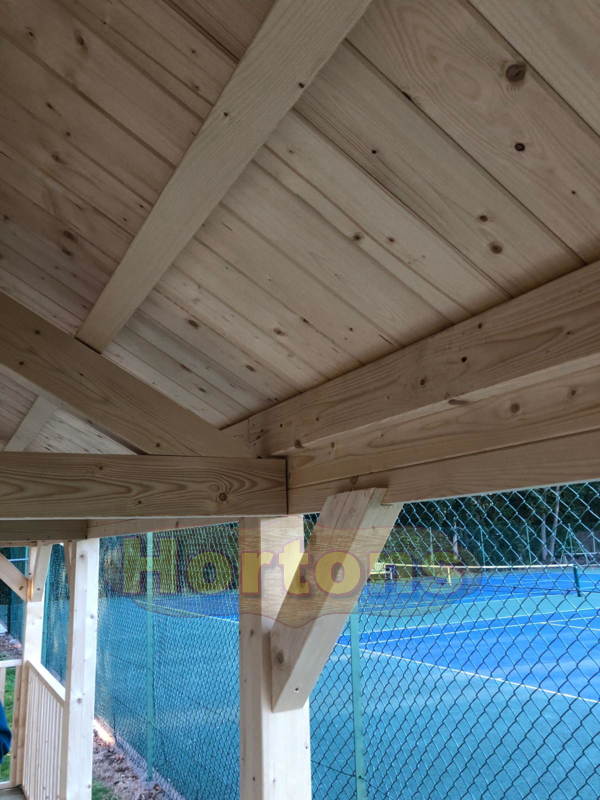

7x4m sports pavilion veranda roof detail
7m x 4m sports pavilion on timber base

7x4m Thatcham Pavilion

£10,263.04
This pavilion is designed for the smaller clubs where a combination building is required -   Main meeting room / leisure room/changing room Storage area for equipment when not being used Front veranda to watch the games being played
Read More

Garden Cabin Model: 9256-7040
Log Cabin Width: 7m
Log Cabin Depth: 4m (excluding canopy)
Building Canopy: 1.5m
Building Wall Height: 1.9m
Building Ridge Height: 3.3m
1 x 1365mm(w) x 980mm(h) Window
1 x 1565mm(w) x 2100mm(h) Double Door
1 x 1050mm(w) x 2100mm(h) Door

7x4m Thatcham Pavilion

£10,263.04

CHOOSE YOUR LOG CABIN WALL THICKNESS: Which one is best for me?

Which wall thickness and cabin specification is best for you?

Insulating the roof and floor of a single skin cabin dramatically improves their usability (warmer in the winter and cooler in the summer), but a Twin Skin is far superior. The table below shows the values achieved with Hortons log cabins (the lower the U value, the better it is).

Cabin Specifications U-value of Building (W/m²K)
28mm log cabin, no insulation 2.56
45mm log cabin, no insulation 2.28
28mm log cabin, with just roof insulation - no floor insulation 1.78
45mm log cabin, with just roof insulation - no floor insulation 1.48
45mm log cabin with roof and floor insulation 0.84
70mm log cabin with roof and floor insulation 0.81
Hortons Insulated Twin Skin Log Cabins
35+35mm Twin Skin log cabin with standard fiberglass insulation kit 0.6
35+35mm Twin Skin log cabin with standard Celotex insulation kit 0.35
45+45mm Twin Skin log cabin with standard Celotex insulation kit (50mm wall cavity) 0.34
45+45mm Twin Skin log cabin with non-habitable UK Building Regulations Celotex insulation kit (90mm wall cavity) 0.23
45+45mm Twin Skin log cabin with UK Building Regulations Celotex insulation kit (105mm wall cavity) 0.21
70+70mm Twin Skin log cabin with UK Building Regulations Celotex insulation kit (105mm wall cavity) 0.2

lower the U value, the better it is) -

For realistic comparison purposes, this is a table showing the U values required by UK Building Regulations for homes over

the years, so you can see how the insulation of our cabins compare with houses built through the decades -

Year 1965 1970 1980 1990 2000 2010 2016 2016 2022
Whole Building U-value (W/m²K) 1.95 1.81 1.59 0.99 0.63 0.37 0.25 0.25 0.23

We also offer upgrades for windows and doors, glazed areas, and cold spots. Upgrading these makes a big difference as well.

  • 45mm Single Skin
  • 60mm Single Skin
  • 70mm Single Skin
  • 35mm Twin Skin = 120mm Thick Walls
  • 45mm Twin Skin = 140mm Thick Walls
Thatcham Sports Pavilion 7x4m, 45mm single skin

General options (popular options to choose for our log cabins)
No options found for this product ID.
Roofline options
No options found for this product ID.
Windows and doors
No options found for this product ID.
Paints and treatments (Factory painting or self-application options)
Fire protection options
Fire protection options
Gold star base coat (self-application)
Installation service for log cabins and timber buildings
No options found for this product ID.
Other items that you may want to enquire about
No options found for this product ID.
Thatcham Sports Pavilion 7x4m, 60mm single skin

Thatcham Sports Pavilion 7x4m, 70mm single skin

Thatcham Sports Pavilion 7x4m, 35+35mm Twin Skin

Thatcham Sports Pavilion 7x4m, 45+45mm Twin Skin

This pavilion / clubhouse log cabin can be made to any shape, size and design, with or without internal partitions,  making it very adaptable. It can be used for a cricket, tennis or football clubhouse, changing rooms, games room and many other uses.

This pavilion also comes with the option of adding various degrees of insulation and can even comply with building regulations for a heated building for all year round usage (Twinskin version required).

We make all Hortons log cabins from slow grown spruce timber. Double glazed windows and doors are standard for all Hortons Log Cabins of wall thickness 35mm and above. 28mm Log cabins come with single glazing as standard ( Upgrade is available). We fit your glass for free before delivery, unlike some of our competitors. Hortons cabin doors come with special security hinges which are also adjustable. It is not possible to unscrew our log cabin doors from their frame to gain access - we use special security hinges which are also fully adjustable. We can add extra doors and windows to any Hortons Log Cabin, call us for details & quotes. Minimum purlin size for Hortons log cabins is 70x140mm and no greater than 600mm apart for a very strong roof
